1. Introduce

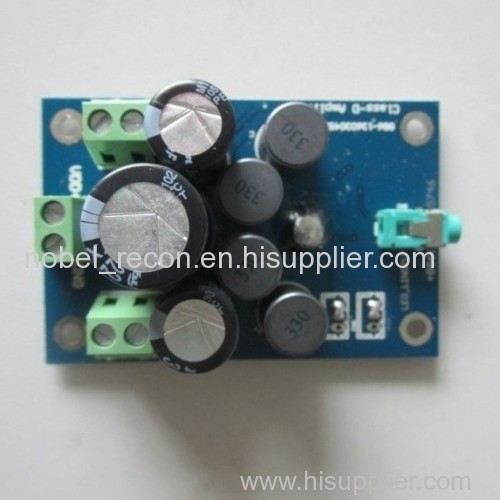

digital amplifier module,class D audio amplifier module,stereo amplifier board

SL-A09S is the new class D amplifier module,which is high End design, it is new product of digital amplifier board,use SMT decal of main IC,connection is very simple.High Power efficiency,Less heat.High Performance with heatsink.

 2. Application

 Power speaker
 LCD monitor
Computer and laptop monitor

3. Feature

·        2*25W output power in stereo mode(8Ω THD=10%)

·        High efficiency: Up to 90%

·        Filterless class D amplifier

·        Programmable gain(+22dB, +29.5dB, +36dB)

·        High PSRR(90dB at 1KHz)

·        Shutdown and mute control

·        Integrated click-and-pop suppression

·        Low 0.2% THD+N

·        Current limit and thermal protection

·        Available in thermally efficient, space-saving package: 56 pin TQFN

            The dimension is only 72mm*48mm

4. Parameter
